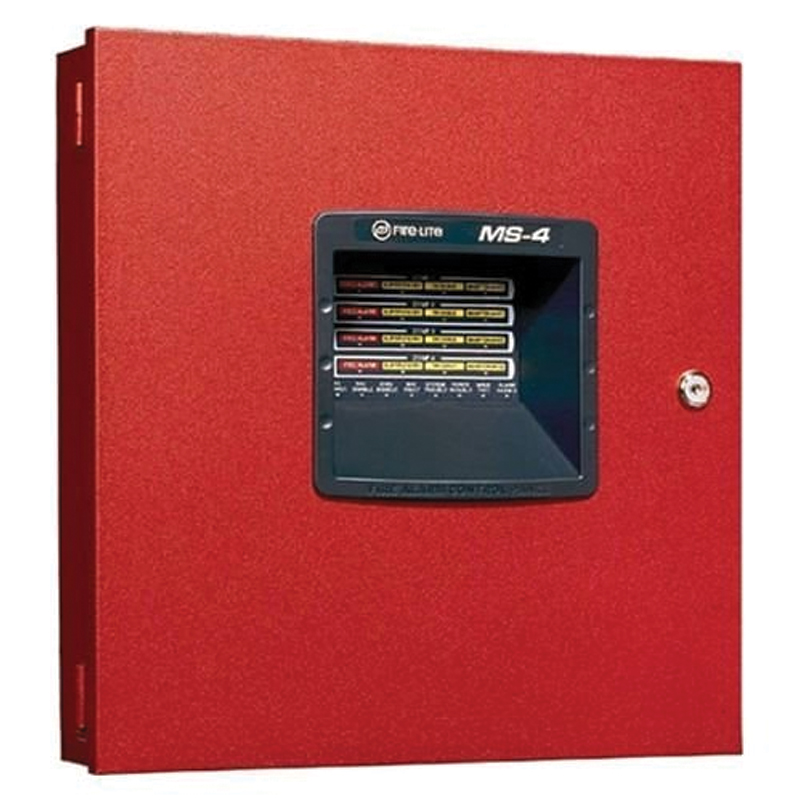

MS-4 4-zone fire alarm control panels (FACPs) bring the latest in microprocessor technology to conventional fire controls. These FACPs are compatible with System Sensor® i3 smoke detectors with drift compensation, maintenance alert, and freeze warning. Automatic synchronization of audio/visual devices is provided with three selections for manufacturer protocol. The notification appliance circuit (NAC) protocol can silence audible devices while strobes continue to flash, using a single pair of wires. These FACPs are compatible with conventional input devices such as 2- and 4-wire smoke detectors, pull stations, water flow devices, tamper switches, and other normally open contact devices.
Main Features:
- Four Style B Initiating Device Circuits
- I3 Technology
- NACs programmable
- One Style Y (Class B) NAC
- 24 VDC
- Silent or audible walk test operation mode commanded from the front keypad
- Piezo sounder for alarm, trouble, supervisory and maintenance
- Each zone may be programmed for supervisory or fire
- Form-C alarm, trouble, and supervisory relays
- Four-zone conventional FACP with 240 VAC, 50 Hz, 1.15 A operation
Specifications
General Information
| ADI Part Number | FL-MS4 | Brand Name | Fire-Lite Alarms by Honeywell | Manufacturer | Honeywell International, Inc | Manufacturer Part Number | MS4 | Product Model | MS-4 | Product Name | MS-4 Burglar Alarm Control Panel | Product Series | MS |
Technical Information
| Connectivity Technology | Wired | Number of Standard Zones | 4 | Panel Control Type | Conventional |
Power Description
| Input Voltage | 240V AC |
Warranty
| Limited Warranty | 3 Years |
Miscellaneous
| Compatibility | System Sensor i Smoke DetectorsNormally Open Contact DevicesFour Wire Smoke DetectorsTwo Wire Smoke DetectorsWater-flow DevicesTamper SwitchesPull Stations |
