Standard Features
• High Performance LED Strobe Technology – Ultra low device current consumption allows: – More devices per circuit – Ability to use lower gauge wire – Longer wire runs – Fewer booster power supplies – High efficiency optics – Selectable 15, 30, 75, or 110 cd light output – LED devices may be mixed with legacy Xenon strobes
• Efficient Audible Output – Selectable high or low dB horn output – Selectable temporal or steady horn output – Improved audio frequency range for better wall penetration
• Low-profile Design – Ultra-slim... protrudes about 1.5" from the mounting surface – Attractive appearance... no visible mounting screws
• Multiple Marking Options – Order in red or white with or without FIRE markings – Change markings at any time with replaceable quick-swap covers

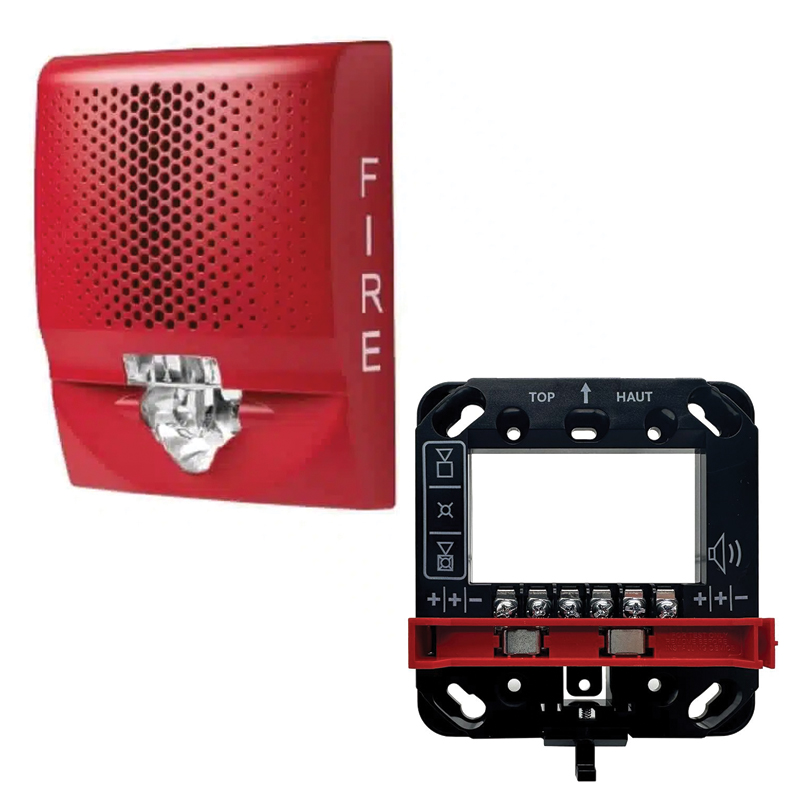

• Easy to Install – Pre-install and pre-wire with convenient universal room side wiring plate – Check electrical continuity on room side wiring plate with included diagnostics check bar – Diagnostics port streamlines device circuit testing – Fits 1-gang, 2-gang, 3.5-inch octagon, and 4-inch square electrical boxes – Optional red and white trim plates available – Slide switches for field configuration – 12 to 18 AWG in-out screw terminals for quick wiring
Specifications
| Brand | Edwards |
