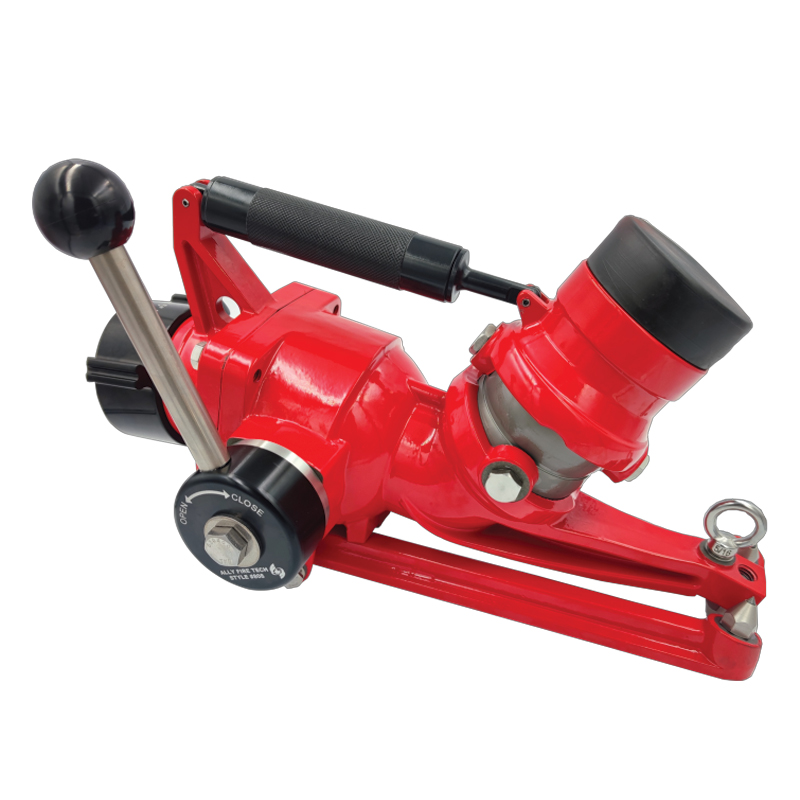

Portable Monitor 808
- Low profile design for stable operation
- Highly maneuverable
- Simple & quick attack operation, operate like handline while delivering much more water
- Compact size and light weight
- Flow range up 500 GPM (1900 LPM)
- Horizontal rotation is adjustable 20 degree each side of center.
- Ball shutoff locking handle
- Carbide tip spike on base support for long term wear resistance and ground stability
- Large handle for easy carry around
- Available in NST, BSP or NPSH Thread
| FM Certificate | |
| Flow | Max. 500GPM (1900LPM) |
| Outlet Size | 2.5" (38mm) Male Thread |
| Inlet Size | 2.5" (38mm) Female Thread |
| Travel Range | Vertical: 20°-60° (manned) Horizontal: 20° Either Side |
| Material | Alloy |
| Weight | 16.5 Lbs. (7.5 Kg) |
| Complement to | 605,606,646,623,625 |
Drawing-808.pdf
Download
