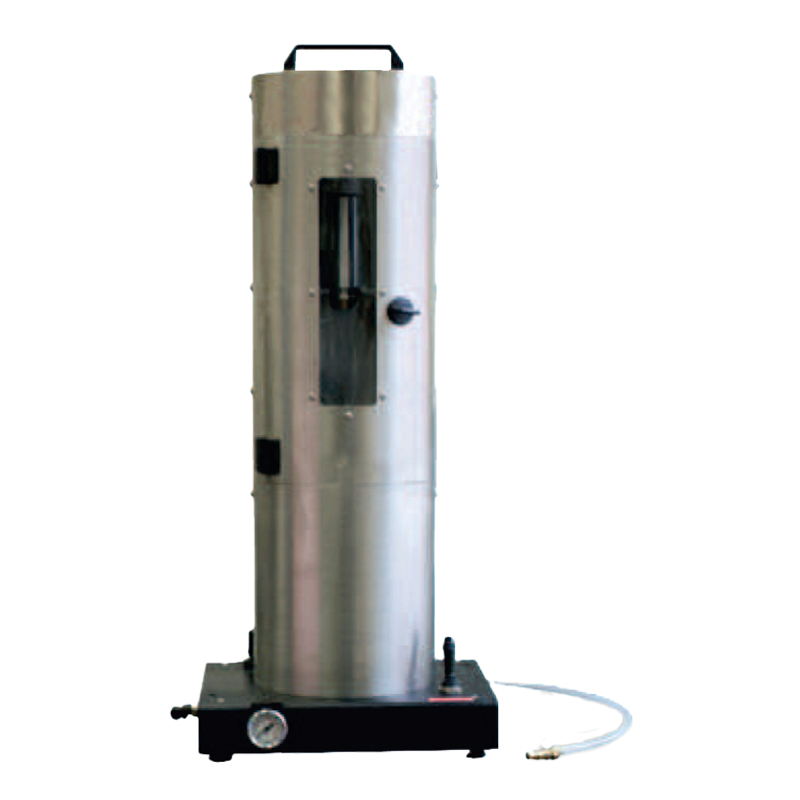

PNEUMATIC FILLING MACHINE
- Any solvent based paints with max viscosity of 300s/DIN 4mm can be filled into pre fill cans using this machine.
- Average output of 35 cans per hour
- All important controls directly visible
- Easy to adjust pressure gauge (7-8 bar/100 - 115 PSI working pressure)
- Flexible, removable piston, which self-adjusts to the paint-cylinder
- Continuous air supply needed (works on air pressure only, no power cable needed)
PNEUMATIC FILLING MACHINE consists of:
Exterior:
- Stainless steel chassis, high-quality steel body and door
- Control elements with level indicator
- Base pate
Interior:
- Mobile lifting device with can pressing plate
- Paint dispensing cylinder and locking device
- Piston and filling adapter
- Filling lever
Dimensions: 32 x 25 x 78 cm
Weight: 26 Kg
Noise level: Sound pressure level below 70 dB(A)
User manual for Pneumatic filling machine.pdf
Download
