Stat-X® fire suppression systems with thermal and manual operation are stand-alone units that incorporate their own patented detection mechanism, eliminating the need for separate detection and release controls. The thermal feature allows automatic activation when the ambient temperature reaches a preset level, discharging condensed aerosol to quickly suppress the fire.
Additionally, these units can be manually activated via a cable pull installed at the entry to the space. If multiple units are installed, a single cable pull can activate all, ensuring total flooding with Stat-X aerosol, which quickly extinguishes the fire and remains suspended to prevent reflash.
Suitable for:
SPECIFICATIONS
Agent Container. The generator housing is constructed of exterior and interior stainless-steel shells separated by an insulating material. The top and bottom of housing is stainless steel. The housing is sealed with a non-permeable membrane and incorporates a mechanical means to ensure rupture of the membrane upon activation. The housing is non-pressurized prior to system activation.
Finish. Brushed stainless steel.
Aerosol Agent. Aerosol generated is potassium based, and manufacturer shall provide fifteen (15) minute time weighted average data from an independent United States laboratory demonstrating that the aerosol does not produce (at normal design concentrations) harmful levels of CO, CO2, and NOx based on NIOSH standards. The product has no ozone depletion potential and no global warming potential. Agent is approved for commercial sale by the US EPA.
Thermal Actuator. Unit shall be activated by means of a thermal actuation device rated 70°C/158°F, 95°C/203°F, or 123°C/254°F. The actuator is anodized aluminum or stainless steel and is capable of both thermal and/or manual activation.
Operation/Storage Parameters:
- Temperature -0°C to +54°C (+32°F to +130°F)
- Relative Humidity up to 98% at +35°C (+95°F)
- IP rating: 55
General Specifications:

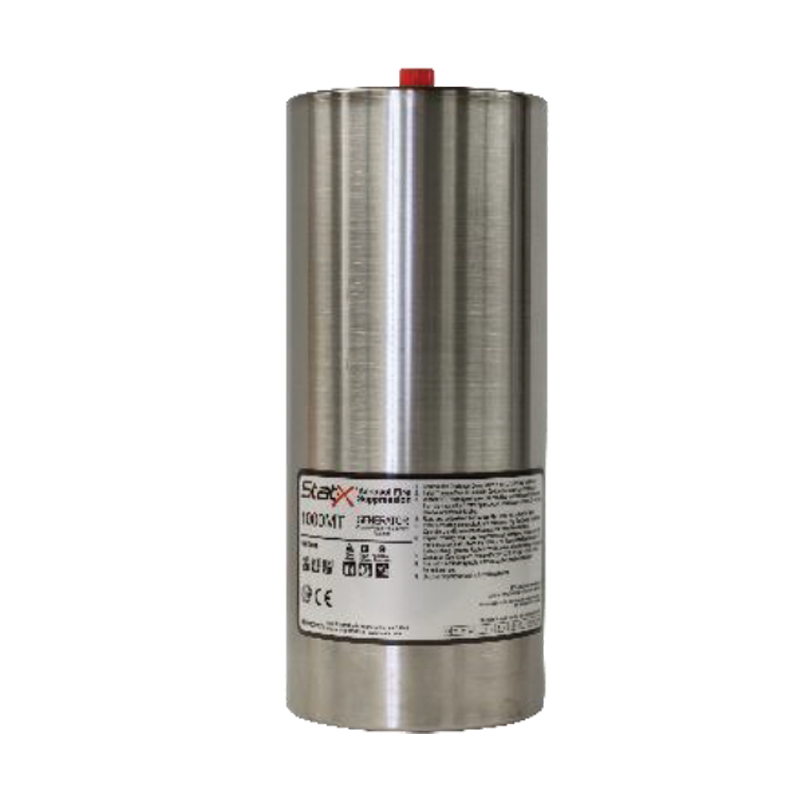

MODEL | 250MT | 1000MT |
Aerosol Mass: grams | 250 | 1000 |
Weight: kg (lbs.) | 1.31 (2.9) | 5.61 (12.4) |
Length (with actuator): mm (inches) | 218 (8.6) | 329 (13.0) |
Diameter: mm (inches) | 76 (3.0) | 127 (5.0) |
Discharge Time: (sec) | 18.0 | 25.0 |
Thermal/manual head activation temperature options are: 158°F/70°C, 203°F/95°C, or 254°F/123°C.
Notes
- Please note that the weights and length dimensions that are listed above for the Stat-X generators are based on the length of the generators with the thermal/manual heads installed on the generators
- Weights listed are median values with range of +/- 10% for 2”/3” diameter models and +/- 5% for 5”/8” diameter models
- Lengths listed includes the entire length of the generator including the ¾” threaded coupling
- Discharge times listed are approximate
