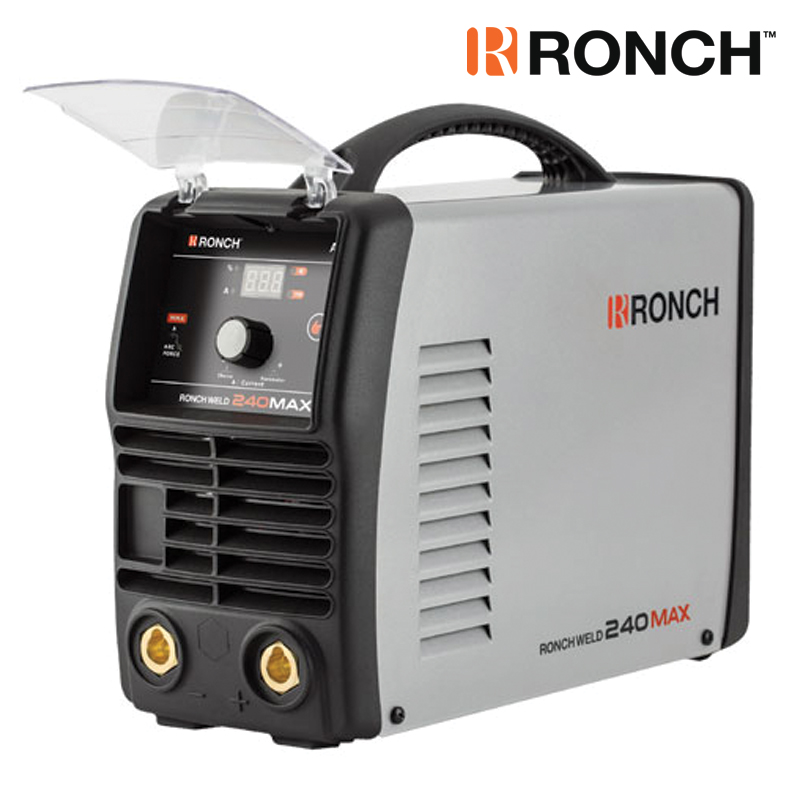

The Ronch 240 MAX is a versatile welding machine that combines stability, safety, and portability. Its inverter architecture maintains a controlled arc, integrates protections against adverse electrical conditions, and is designed to work with diesel generators, which is critical in assembly, construction, and maintenance work.
Category
Stick Welder, TIG Welder
Serial
MAX
The Ronch 240 MAX offers the following:
• Processes: TIG (Lift) + MMA/Stick, with VRD and adjustable Arc Force.
• Digital display: clear amperage reading and easy parameter management.
• Temperature, voltage, and current protections that increase the reliability of the equipment.
• Versatility with generators and preparation for input voltage spikes.
Technical specifications of the Ronch 240 MAX
| Feature | Value |
|---|---|
| Nominal input power (KW) | 10.5 |
| Rated input power (A) | 45.5 |
| Work cycle (40ºC 10min) | 100% 155A / 60% 200A |
| No-load voltage (V) | 76.5 |
| Current range (A) | 20~200 |
| Input power (V) | 1~220/230/240 ± 10% |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 85 |
| Net weight (kg) | 6.8 |
| Shipping dimensions (mm) | 410 x 150 x 285 |
| Electrode diameter | 1.6 - 5.0 |
| Electrode type | 6011, 7018 etc. |
| Power factor | 0.6 |
| Refrigeration | AF |
| Isolation class | H |
| Protection class | IP23 |
Specifications
| Brand | Ronch |
